Black Hole Vu+ Duo 1.7.2 (media-tree)

lorenzo64

Administrator
Black Hole Vu+ Duo 1.7.2 (media-tree)
The Black Hole 1.7.2 is the most "stable" and fast version of 3.1.1 releases.



Based on Offilcial Vuplus image 7.0
Kernel: 3.1.1
Vuplus drivers: 20120126
Vuplus DvbApp: 20120204
MeoBoot: 1.0
Skin: Army MooD HD updated
NEW NEW NEW: Next generation Usb Tuner Drivers (media-tree bh build)
Wifi drivers: rt3070 driver updated with some BH patches
Fixed: Prevent crashes in plugins using infobar (double ok crash)
Fixed: Vuplus WirelessLanSetup bug (Cannot generate Passphrase)
Changelog Vu+ drivers: clean & speed up dmx driver
Add gstreamer plugin fragmented
Kernel: add igmp.patch
Fix serviecmp3 bug: stop response timeout when stream is HLS.
Fix youtube player of webbrowser launcher plugin: add code to select stream quality.
NetworkSetup.py : fix checkNetworkCB function to prevent crash error
HDMICEC : fix default device name
Vuplus Event : input 7 SN_b for MSA
Webbrowser: fix build bug.

Changelog about USB DVB & Wifi Devices:
- changed all set of DVB USB drivers: now with BH image there are the latest drivers available
- USBTuner 0.3.9: a lot of bugfixes to improve stability and performances
- Wifi (RT3070): applied some extra patches to Vu+ driver to improove dongle functions


WARNING: This Image has the latest drivers and CAN NOT be installed in multiboot.
The image MUST be installed in the flash.
Black Hole can not support images not installed in the flash.

This latest version of the Black Hole series has been entirely rewritten and improved in the code for maximum stability and performance.

Please note that of all images Black Hole now has the best epg system:
- Integrated OpenEpg
- Rytec dedicated epg.dat
- New system epg.dat outside.
This last feature gives the possibility to various forums or communities to create their favorite EPG data files and load them into a web space.
Community members can then download it from our servers.
This feature provides other benefits such as:
Increase download speed of EPG
Download EPG from any channel
Schedule the download of EPG decoder even during standby
Users can customize the providers using Add / Remove function

Main functions of the buttons on the remote

OK button = Skin with simple information
OK button x 2 = Extra Info Skin
Blue button = Black Hole Blue Panel
Blue button and then Red button = Black Hole Epg Panel
Blue button and then Yellow button = System Monitor Panel
Blue button long press = Extensions
Yellow button = Time Shift
Green button = Black Hole Green Panel
Green button long press = Subservices
Green button and then Red button = Fast Plugin Setup
Green button x 2 = Fast Plugin
Button Red = Start Record

Addons

Green button and then Yellow button takes you to:-
Dedicated server for BlackHole addons
Download and install additional packages from the Black Hole server

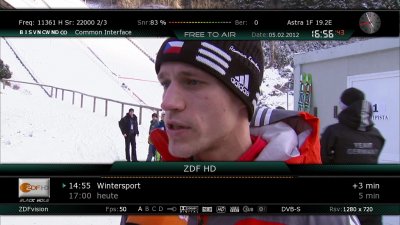

Infobar / OSD

Analog Clock Gui
Channel orbital location

Advanced Tuner Info: Sr Freq Pol Fec
Signal SNR, BER
Infobar picons

Characteristics of BlackHole Panels

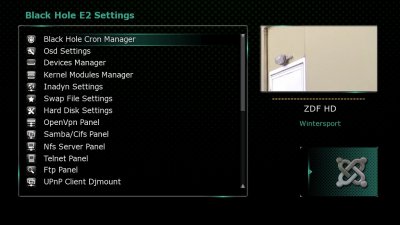

Blue Panel
Extra Settings

Black Hole Cron Manager (Manage schedules)
OSD Settings (OSD configuration)
Devices Manager
Kernel Modules Manager(Kernel module operator)
Inadyn Settings (Configure Inadyn)
Swap File Settings (Configure File Swap)
Hard Disk Settings (Configure Hard Drive)
OpenVPN Panel ( OpenVPN Panel)
Samba / CIFS Panel ( Samba Panel)
NFS Server Panel ( NFS server Panel)
Telnet Panel ( Telnet Panel)
FTP Panel ( FTP Panel)
UPnP Client Djmount
UPnP Server Mediatomb
Tuner Server
Network Browse & Mountpoints

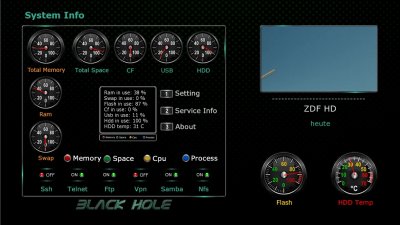

Info Panel
1 - Gui Setting (Gui configurations)
2 - Service Information (information system)
3 - About (info)
Memory (Memory)
Space (capacity)
CPU (processor)
Process (process)

EPG Panel
Global settings (global settings EPG)
Setting Provider (ISP settings)

Green Panel

Fast Plugin Setup (Configure quick access to your favourite plugin)

Fast Plugin (Access your favourite plugin)

Addons (added)
Addons Download Manager (Manager for package downloading)
Installation manual packages (Manual installation of Black Hole packages)
Manual Install IPK packages (Manual installation of IPK packages)
Addons Uninstall Panel (Uninstalled packages)
Black Hole Statistics (See connections, top downloads and more)

Credits
Thanks to Pedro_Newbie for Backup script
Thanks to the group of Beta Testers.
Thanks to Rytec for providing us with the server with all epg.dat files.
Thanks to MaxZ4 for Integrated EPG loader.
Thanks to Skaman for Cross EPG
Thanks to Lukkino (VDR-Italy) for the source code of OpenTV.
Thanks to Reinh@rd for the file satellites.xml.
Thanks to ambrosa (Pli Board) for ready-to-go A867 driver patch

DISCLAIMER

THE BLACK HOLE IMAGE IS BASED ON THE OFFICIAL FIRMWARE PUBLISHED BY VU+ AND IN ACCORDANCE WITH THE LAW IT CONTAINS ONLY SYSTEM ADDITIONS & GRAPHIC CHANGES.

THE BLACK HOLE IMAGE DOES NOT CONTAIN ANY EMULATOR, K E Y S, SOFTCAMS OR OTHER SYSTEM FOR VIEWING PAY - TV WITH OR WITHOUT A PAID SUBSCRIPTION.

LASTLY, THE BLACK HOLE IMAGE DOES NOT CONTAIN ANY SYSTEM TO DOWNLOAD PLUGINS OR EMULATORS FROM EXTERNAL SERVERS OR SOFTWARE THAT MAY BE USED FOR ILLEGAL PURPOSES SUCH AS CARD SHARING.

LICENSE (TERM OF USE)

THE BLACK HOLE IMAGE IS ISSUED FOR THE FREE USE FOR ALL USERS PROVIDED THAT IT WILL NOT BE CHANGED IN ANY WAY AND THAT IT WILL ONLY BE USED FOR LAWFUL PURPOSES.

ANY CHANGES OR ADDITIONS TO BLACK HOLE IMAGE THAT INVOLVE UNLAWFUL USE OF THE IMAGE SUCH AS CARD-SHARING AND EMULATORS ARE NOT ALLOWED AND CAUSE THE REVOKE OF THIS LICENSE.
This is free hobbyist software and it comes with absolutely no warranty. Use it at your own risk.


Attachments

  • BlackHole-1.7.2-bm750_usb.zip
    50.9 MB · Views: 5,451

danger

Vu+ Newbie
Hi, I am new to this, can someone tell me where to download this image and how to install please. Thank you.


danger

Vu+ Newbie
Thanks, found the file to download, going to search how to install it. Does anyone know if I can use a usb hdd to install it? I do not have a flash drive.


Mito

Administrator
Thanks, found the file to download, going to search how to install it. Does anyone know if I can use a usb hdd to install it? I do not have a flash drive.
You need an usb stick to install this image.

To install the image:
- Unzip the attached file and copy the folder "vuplus" into an usb stick FAT 32 formatted;
- Connect the usb stick to the DUO (it have to be power off by the switch on the rear);
- Power on the DUO by the switch and follow the instruction you will see on display;
- After upgraded the image, remove the usb stick and reboot the DUO.

Before to install this image you need to upgrade your Duo boot loader:
http://www.vuplus-community.net/board/threads/vu-duo-boot-loader-updgrade.3555/
