LCD4LINUX Solo4K

Matrix10

Administrator
LCD4Linux ONLY SOLO 4K

To start a new topic.
I think that the team members and others have even more configurations.
Thanks to @Ev0
How to install LCD4Linux on Solo 4K

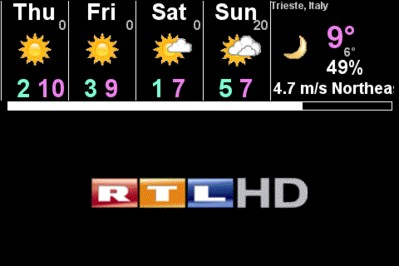

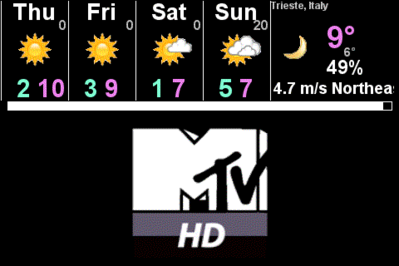

Example : Weather in LCD

First, install Lcd4Linux plugin from the Black Hole server.
Then make a backup on your PC or rename orginal file skin_user.xml file in /etc / enigma2 to skin_user.bak
This is the original file for LCD in Black Hole image.
After that, put the files from my ZIP if you like to have Weather in LCD

Restart BOX

You can edit your weather City in LCD4Linux Settings plugin or you can edit file lcd4conf

and reboot.

Lcd4Linux using the same picons you use for skin
format 220 x 132

Notification
It is possible that after image online updates you lose LCD4Linux in LCD
In that case you have to re-insert skin_user.xml for LCD4Linux
in /etc/enigma2


Attachments

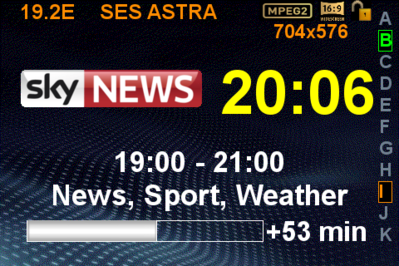

  • l4ldisplay1.png
    11.1 KB · Views: 643
  • l4ldisplay2.png
    11.7 KB · Views: 549
  • LCD4Configuration.zip
    2.3 KB · Views: 1,271
Last edited:

Ev0

Admin
Here is my lcd4config file (and also the background picture I used).

Also included is a modified skin_user.xml so that you still have some usable info when in channel selection screen and going through the menu's.




Attachments

  • lcd4config.zip
    68.3 KB · Views: 2,487

WebMan

Vu+ User
Downloaded, restarted, activate webif for LCD4Linux, can see the configuratione but on receiver is the same screen... :(


Ev0

Admin
You need to either set the display to on in lcd4linux, or now re-upload the skin_user.xml that I posted before and restart.


WebMan

Vu+ User
Done it... No I have BLACK SCREEN :)...
So, I do this:
1. Installed LCD4linux.ipk
2. Downloaded Front Panel
3. Put your config
(till now, I have the "old" display)
4. Put ypur skin_user.xml

BLACK SCREEN


Ev0

Admin
Done it... No I have BLACK SCREEN :)...
So, I do this:
1. Installed LCD4linux.ipk
2. Downloaded Front Panel
3. Put your config
(till now, I have the "old" display)
4. Put ypur skin_user.xml

BLACK SCREEN
Now go into lcd4linux, and make sure the lcd is turned on.


Matrix10

Administrator
@Ev0

I am not at home
but I see there in log 4K.png error crash

SkinError: {skin.xml}: pixmap file /usr/share/enigma2/lcd_icons/4K.png not found!

You have all this in your ZIP


WebMan

Vu+ User
Sure... I reboot 3 times (back button)... Nothing change...
I'll try again tomorrow...
(When is in standby, the original one [without lcd4 have date upe and hour down, this one I try to modify LCD have hour up and date down :) )


Ev0

Admin
@Ev0

I am not at home
but I see there in log 4K.png error crash

SkinError: {skin.xml}: pixmap file /usr/share/enigma2/lcd_icons/4K.png not found!

You have all this in your ZIP
I will add it to the zip, but after the next online update it will be included in the image by default anyway.
