BH 1.7.9 and Hauppauge pctv nanostick t2 290e usb-tuner

Status
Not open for further replies.
paolino

paolino

Vu+ User+++
For example: An older Fujitsu-Siemens DVB-T Mobile TV Tuner (Twinhan DTV Alpha) VP-7045G needs full one USB slot power 5V/0,5A (Zarlink MT352 chip)

paolino

paolino

Vu+ User+++
This: The CXD2820R "DVB-T2" reception power
consumption is around 300 mW (typ.) in
ordinary reception environments and only
about 700 mW (typ.) during LDPC decoder
operating at maximum level.

is only power consumption of demodulator in your stick, you have to add also power comsumption of internal Empia controller.
See here http://linuxtv.org/wiki/images/8/83/PCTV_nanoStick_T2_290e_PCB_em28xx_demod.jpg

So again: GIVE THE POWER TO YOUR TUNERS !!!

S

superglud

BH Lover
BH 2.0.1 Rev A
On a powered hub (nothing else but the two tuners on the powered hub)

Still not working, but after changing from unpowered to powered hub, the system is acting a bit different

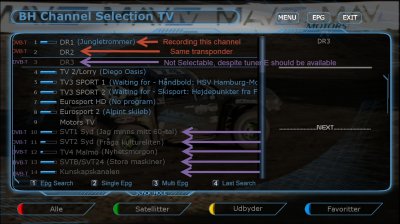

The "Tuner handling system" is acting almost as if there is only one dvb-t tuner (I think)





While recording a DVB-T channel
Watching another DVB-T channel on the same transponder is OK
Watching another DVB-T channel on another transponder,

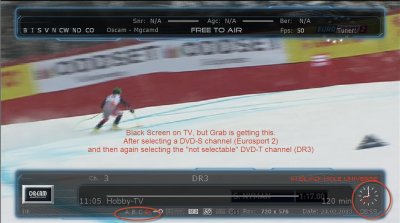

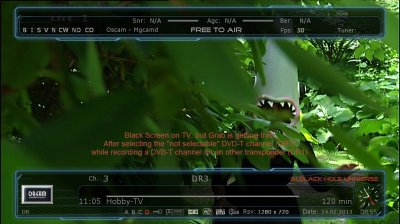

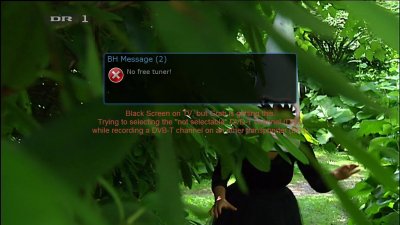

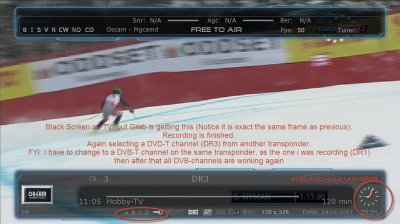

then the usb-tuner 2 is not giving me any picture on screen, only black screen, signal quality and strength is OK
FYI:
Both tuners is on a powered USB-hub

Best regards


Attachments

  • dmesg.txt
    14.7 KB · Views: 2
S

superglud

BH Lover
angelofsky1980 said:
There are some telnet commands useful to understand what happen on our boxes with DVB-T USB devices.
The commands shown only some infos regarding devices and not personal datas or anything else:

dmesg > /tmp/output.txt
lsmod >> /tmp/output.txt
cat /proc/bus/usb/devices >> /tmp/output.txt
cat /proc/bus/nim_sockets >> /tmp/output.txt
Click to expand...

output.txt for investigation as requested

Best regards


Attachments

  • output.txt
    19.5 KB · Views: 4
S

superglud

BH Lover
angelofsky1980 said:
I've reconfigured my Ultimo with 3xDVB-S2 tuners and I can make some tests with 2 DVB-T USB tuners.
Click to expand...

Hi angelofsky1980

I guess, you have not had time, to look at it yet

FYI:

BH 2.0.2
On a powered hub (nothing else but the two tuners on the powered hub)
Still not working

Best regards


Attachments

  • output.txt
    19.6 KB · Views: 2
S

superglud

BH Lover
FYI:

BH 2.0.2 Rev. C
On a powered hub (nothing else but the two tuners on the powered hub)
Still not working

UsbTuner v0.3.12

Best regards


Attachments

  • output.txt
    19.6 KB · Views: 3
S

superglud

BH Lover
FYI:

BH 2.0.3
On a powered hub (nothing else but the two tuners on the powered hub)
Still not working (System showing two active usb-tuners, but system still acting as if there is only one)

UsbTuner v0.3.12

Best regards


Attachments

  • output.txt
    19.8 KB · Views: 3
M

miky28

Vu+ Newbie
And what about new drivers?

20130819
- Fix DTSHD downmix & passthrough
- Support more than 4 tuners(vtuner) in duo2 and ultimo
- Fix DVB-C/T tuner recognition(duo2)
- Fix play/pause in solo2(when duo2's new remote control is used)
- Fix Xcrypt card detection problem(duo2, solo2, uno, ultimo)
- Support transcoding bitrate/framerate setup
(solo2, 50K<bitrate<1M, Change is in effect in the subsequent connection )

S

superglud

BH Lover
FYI:

BH2.0.5 Rev. B ( added new drivers vuplus-dvb-modules-vuultimo-3.1.1-4.4.3-20130819 )
On a powered hub (nothing else but the two tuners on the powered hub)
Still not working (System showing two active usb-tuners, but system still acting as if there is only one)

UsbTuner v0.3.12

Best regards


Attachments

  • output.txt
    19.6 KB · Views: 4
paolino

paolino

Vu+ User+++
superglud said:
FYI:

BH2.0.5 Rev. B ( added new drivers vuplus-dvb-modules-vuultimo-3.1.1-4.4.3-20130819 )
On a powered hub (nothing else but the two tuners on the powered hub)
Still not working (System showing two active usb-tuners, but system still acting as if there is only one)

UsbTuner v0.3.12

Best regards
Click to expand...

Try, only for my curiosity to remove one of DVB-S2 tuners, to have only four (4) active tuners on system.

Nitemare

Nitemare

Vu+ User
BH2.0.5 Rev. B with 2 * Twin DVB-S Tuners (4 tuners in total) AND added new drivers vuplus-dvb-modules-vuduo2 - 20130819
Nano 290e in rear usb (second usb used for picons)

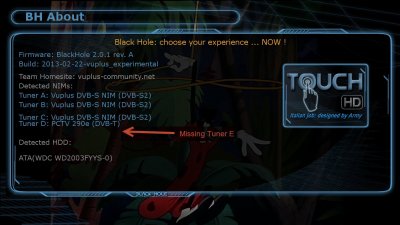

Not showing TUNER E in Tuner set up??

Thanks...


Attachments

  • output.txt
    21.2 KB · Views: 0
M

miky28

Vu+ Newbie
BH 2.0.5

Tuner A: Vuplus DVB-S NIM(AVL2108) (DVB-S2)
Tuner B: Vuplus DVB-S NIM(AVL2108) (DVB-S2)
Tuner C: Vuplus DVB-S NIM(AVL6222) (DVB-S2)
Tuner D: Vuplus DVB-S NIM(AVL6222) (DVB-S2)
Tuner E: DVB-T TV Stick (DVB-T)
Tuner F: DVB-T TV Stick (DVB-T)

Tuner E&F is usb dvb-t dual tuner (it9135).
Everything is working fine.... so far :). I have to do stress test on usb dvb-t tuner. I need rock stable tuner like these in inner slots.

S

superglud

BH Lover
miky28 said:
BH 2.0.5

Tuner A: Vuplus DVB-S NIM(AVL2108) (DVB-S2)
Tuner B: Vuplus DVB-S NIM(AVL2108) (DVB-S2)
Tuner C: Vuplus DVB-S NIM(AVL6222) (DVB-S2)
Tuner D: Vuplus DVB-S NIM(AVL6222) (DVB-S2)
Tuner E: DVB-T TV Stick (DVB-T)
Tuner F: DVB-T TV Stick (DVB-T)

Tuner E&F is usb dvb-t dual tuner (it9135).
Everything is working fine.... so far :). I have to do stress test on usb dvb-t tuner. I need rock stable tuner like these in inner slots.
Click to expand...

Super, so far so good, getting closer to a solution

Looking forward to your stress test feedback
(recording(E) and viewing(F), recording(E) and recording(F) , etc....)

@miky28 what vu+ box do you have "Ultimo" or "Duo2" ?

Best regards

M

miky28

Vu+ Newbie
Ultimo

Tuner A: Vuplus DVB-S NIM(AVL2108) (DVB-S2) - slot A
Tuner B: Vuplus DVB-S NIM(AVL2108) (DVB-S2) - slot B
Tuner C: Vuplus DVB-S NIM(AVL6222) (DVB-S2) - slot C
Tuner D: Vuplus DVB-S NIM(AVL6222) (DVB-S2) - slot C

S

superglud

BH Lover
BH2.0.6
On a powered hub (nothing else but the two tuners on the powered hub)

Finally it is working

Thanks to all involved

Keep up the good work

This Thread can be closed

Best regards

FYI:
Minor issues that could be improved:



angelofsky1980

angelofsky1980

BlackHole Driver Specialist
superglud said:
BH2.0.6
On a powered hub (nothing else but the two tuners on the powered hub)

Finally it is working

Thanks to all involved

Keep up the good work

This Thread can be closed

Best regards

FYI:
Minor issues that could be improved:


View attachment 13166
Click to expand...

Into BH 2.0.6 there are a new set of DVB USB drivers :)
About the issue in the photo I've already reported it to skin makers.

S

superglud

BH Lover
Back to "not working" again, it was working in BH2.0.6 ?

BH2.0.6 Rev. B
On a powered hub (nothing else but the two tuners on the powered hub)
Still not working (System showing two active usb-tuners, but system still acting as if there is only one)
UsbTuner v0.3.12
Best regards


Attachments

  • output.txt
    19.8 KB · Views: 1
