FBC DVB-S2X compatible with older LNBs ?

[AlexWilMac]

Again!!! Don't choose ADVANCED in tuner configuration!!! Choose SIMPLE!



[Matrix10]

Better use configuration mode simple and not advanced
if your antennas are physically well positioned.

tuner C

Configuration mode simple
Mode postioner
Longitude and Latitude for your location

another physical tuner D
Configuration mode simple
Mode single
satellites 28.2

======================

or vice versa First D and second C depending on what you connect to the tuners positioner or SKY LNB
===========================
virtual tuners configs
Config Mode loopthrough
connected to each other and to physical tuners



[koskotas]

Better use configuration mode simple and not advanced
if your antennas are physically well positioned.

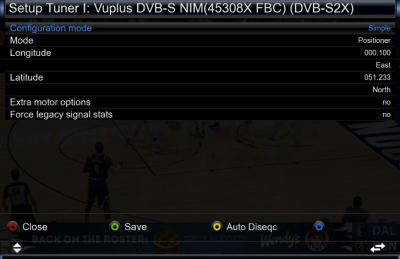

one tuner I

Configuration mode simple
Mode postioner
Longitude and Latitude for your location

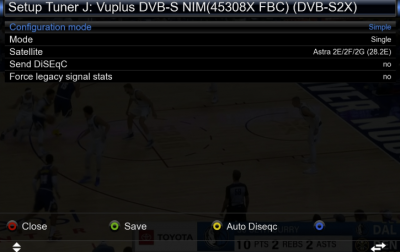

another physical tuner J
Configuration mode simple
Mode single
satellites 28.2

======================

or vice versa First J and second I
===========================
virtual tuners configs
Config Mode loopthrough
connected to each other and to physical tuners

Thanks for this, tried that but can't loop through from virtual to physical. The only option I get from the physical tuners is either FBC Automatic or FBC SCR .. Maybe try a different image?



[Matrix10]

Even I am no longer sure what these physical tuners are (letters)
because you seem to have configured the wrong tuners
and that's why nothing works.
Use Configuration mode simple
so it will be clearer.
Each physical tuner has three additional virtual tuners
The dual SAT tuner has a total of two physical and 6 virtual tuners.
Eight tuners that can be tuned independently to the desired transponder inside the receiver



[Matrix10]

It's not up to the image
you are trying to configure a virtual tuner
so you only have the advanced option.

You need to configure the physical tuner it has
Configuration Mode simple



[Thomas67]

But in early post you also write that you have a working configuration on your Duo2
How does those tuner setup look then?



[koskotas]

Even I am no longer sure what these physical tuners are (letters)
because you seem to have configured the wrong tuners
and that's why nothing works.
Use Configuration mode simple
so it will be clearer.
Each physical tuner has three additional virtual tuners
The dual SAT tuner has a total of two physical and 6 virtual tuners.
Eight tuners that can be tuned independently to the desired transponder inside the receiver

Thanks !
Tuners are now with simple mode but unfortunately the result is that same



[koskotas]

But in early post you also write that you have a working configuration on your Duo2
How does those tuner setup look then?

That configuration was with simple mode , single LNB for sky dish and USALS for motor dish



[Matrix10]

You have disabled DVB-T/T2 Tuners ???
You have restart box after change in tuner configuration ?

You may need to reinstall the image and reconfigure everything again properly
if it doesn't work.

Better put the SAT tuners in the first two positions and the T tuner in the last
and reinstall image.



[koskotas]

I have restarted the box a couple of times. Will re-image tomorrow and feed back. Many thanks on all assistance tonight



[koskotas]

A quick update on this and a resolution !
1. Attempt one : Re-imaged device the device, terrestrial tuners disabled, tuners I & J were offered by image to be configured and were configured in simple mode with USALS and 28sat respectively. No channels from either of these tuners
2. Shutdown new imaged device : replaced slots of where sat and T tuners were fixed and attached cables. Started device , configured tuners A & B now and all working as expected.

Any idea though why it wouldn't work in slot 2 ?
Thanks Matrix10 for your suggestion in resolving this and all assisted



[Matrix10]

Any idea though why it wouldn't work in slot 2 ? ​

maybe a matter of tuner priority,i have not test
which can be changed in BH image in the customize menu
in Open Black Hole the same but I don't remember which menu.



[dsr2]

Bonjour,

Si cela peut aider quelqu'un. J'ai eu des problèmes pour la configuration de mes LNB. J'ai enlevé mon ampli de mon câble et tout a fonctionné.

Bonne journée.
