Ultimo VFD skin without Picon

[hija31]

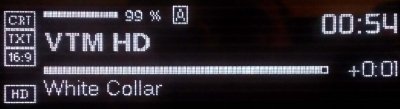

Here is the VFD skin that I made lately.
These are with SNR-bar and Tuner.
Except the files there are also two skin_user files.
One with the SNR on the side, and one with SNR on the top.
All files are free to use .
If you make changes, have noticed something that's not good or you made new skin please post here.
The skins with Picon's you can post on EvO's thread.

P.S. Please always make a back-up before overwriting any file.





Regards
Hija31



[Lancillotto]

Good job



[Lancillotto]

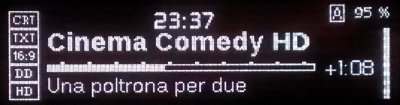

I tried to change the time bar with the point steps in my release, but without success

Concept Example



[hija31]

@Lancillotto

You must work with pixmap ( png icon ) to get that.
Make a 2x7 pixels png file with photoshop. Convert to indexed mode and save as "progres_line".
Copy the file in: user/share/enigma2/vfd_icons.
In xml file edit the InfoBarSummary and ad this:
<ePixmap position="115,40" size="2,7" pixmap="vfd_icons/progres_line.png" alphatest="blend" />
Reload enigma.
Now you have a point step at the middle of the progress bar.
This example of xml setting works only in my above skin.
If you use another skin than you calculate the "x & y" of the progress bar and instead of osition="115,40"
you put: position="x,y"
If you want more step points than add more <ePixmap .........

@ all
I made today a analog clock on stand-by menu.
What do you think.

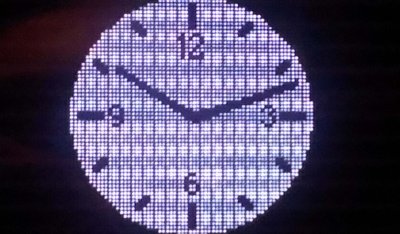

This one is with seconds.

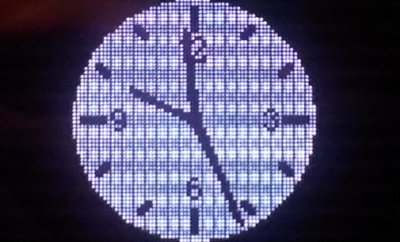

This without.



[Ev0]

It's nice to see these new layouts and different idea's coming out now



[hija31]

It's nice to see these new layouts and different idea's coming out now

I tried to make a white clock and black background which I think would look better but I can't get it to work.
I can't change the clock at white . Standard, is black . If I try inverse I get a G.S.
Maybe someone from the coders have a solution, because that's over my head.



[Matrix10]

I tried to make a white clock and black background which I think would look better but I can't get it to work.
I can't change the clock at white . Standard, is black . If I try inverse I get a G.S.
Maybe someone from the coders have a solution, because that's over my head.

Upload here LCD skin file, with a black and white clock
so I can test if I have time.



[Matrix10]

I'm not sure if you want to have white clock,
Or clock needles ?

But OK

Here hija31 mod with white clock and black clock needles in Standby.

For black needles I'm not sure that we can get.
Because of image coding for analog clock.I have to test.



[hija31]

I'm not sure if you want to have white clock,
Or clock needles ?

I can't get white needles.

White clock with black needles as in photo above is working, but I think that white needles
with black clock would look much better ,



[Matrix10]

I can't get white needles.

White clock with black needles as in photo above is working, but I think that white needles
with black clock would look much better ,

Yes, but I think that the color can not be changed.
I'll ask Coder maybe he knows more.

But white does not look bad .LCD is black.



[hija31]

But white does not look bad .LCD is black.

That's what I think too.

Now we are using a white background for the clock to work. It would look great if the white colour was equal.
But on VFD some pixels are brighter then others and that spoils it.
On the other hand, with white needles we don't need a.png file because as you say the LCD is black.
The needles themselves are tiny so we don't get the disturbsion with pix-elation.



[mehmetpasa]

Here is the VFD skin that I made lately.
These are with SNR-bar and Tuner.
Except the files there are also two skin_user files.
One with the SNR on the side, and one with SNR on the top.
All files are free to use .
If you make changes, have noticed something that's not good or you made new skin please post here.
The skins with Picon's you can post on EvO's thread.

P.S. Please always make a back-up before overwriting any file.

View attachment 11366

View attachment 11367

Regards
Hija31

Thank you very much it was perfect



[DanielFran]

Yes, but I think that the color can not be changed.
I'll ask Coder maybe he knows more.

But white does not look bad .LCD is black.

Hi Matrix,

If Hija31 agree, can you add both VFD skin in server?
It would be a must if you can add the preview too, like for skins... so we can confirm before which one we want to install!

Hija31, keeps the good work!

I would prefer standby clock with inverted colors too. Maybe 2 versions:
1: Without numbers (with or without seconds, and obviously we cannot have the red line)
http://nmuta.fri.macserver.jp/images11/11unei201.jpg

2: With numbers and the circle around
http://t3.gstatic.com/images?q=tbn:ANd9GcRjLyl6FZ95ipVYN-n9TZ6ufrFrc-_vX2fYxhhn6YRNYm3o5ePPKQ



[Matrix10]

Unfortunately, we can not have inverted color for the clock.

I have not found the possibility for
inverted color in coding.
Coder for now there are more important activities.

I have nothing against the skin on the server.
But I must have all files from the author for it.



[hija31]

@ DanielFran
I have nothing against it. All my files are free.
I posted them here to share.

@Matrix10
I hope that the coder find some free time in the future to look at it.
The VFD-skins with SNR in my first post are complete.

About the skins with analog clock, I'll post them after some tests and when I have some more time. May be in the weekend.

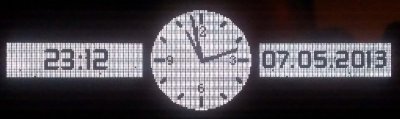

Here is a new test layout of the stand-by menu.



[Matrix10]

Ok

I'll see when I have time
and put on a server.



[Aleksandarn]

@ DanielFran
I have nothing against it. All my files are free.
I posted them here to share.

@Matrix10
I hope that the coder find some free time in the future to look at it.
The VFD-skins with SNR in my first post are complete.

About the skins with analog clock, I'll post them after some tests and when I have some more time. May be in the weekend.

Here is a new test layout of the stand-by menu.

View attachment 11451

Hi Hija31.
Is it possible to upload here your last vork with analog clock in the middle and digital clock on the left and date on the right side?
It looks beautiful.
Thanks in advice.
Regards



[DanielFran]

Unfortunately, we can not have inverted color for the clock.

I have not found the possibility for
inverted color in coding.
Coder for now there are more important activities.

I have nothing against the skin on the server.
But I must have all files from the author for it.

Maybe I did not explain me correctly!
What I mean is to have not a full blanck circle with black numbers, but to have only numbers in white whithout any circle (1st version) or only a white line that delimit the circle (2nd version).

Sent from my U20i using Tapatalk 2



[Matrix10]

Maybe I did not explain me correctly!
What I mean is to have not a full blanck circle with black numbers, but to have only numbers in white whithout any circle (1st version) or only a white line that delimit the circle (2nd version).

Sent from my U20i using Tapatalk 2

I understood
but I do not make LCD skins
I just wanted to help if possible.
Let's wait for the author.



[DanielFran]

Maybe I did not explain me correctly!
What I mean is to have not a full blanck circle with black numbers, but to have only numbers in white whithout any circle (1st version) or only a white line that delimit the circle (2nd version).

Sent from my U20i using Tapatalk 2

Hi Hija31,

Can you try to build same LCD skin but without white background, so only numbers in white?

Keep the good work.

Thanks
